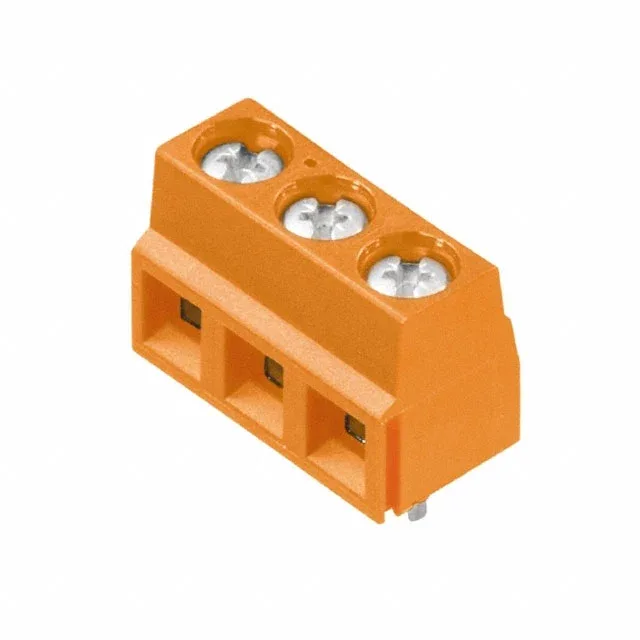

Weidmüller 1912530000
MPN1912530000
Active
TERM BLK 3P SIDE ENT 5.08MM PCB
$1.81Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate LS
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Omnimate LS |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 15 A |
| Wire gauge | 14-28 AWG |
| Wire termination | Screw - Clamping Yoke, Tension Sleeve |
| Color | Orange |
| Housing material | Thermoplastic, Wemid |
| Contact material - plating | Copper Alloy - Tin Plated |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Screw thread | M2.5 |
| Torque - screw | 0.4-0.5 Nm (3.5-4.4 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 3 |
