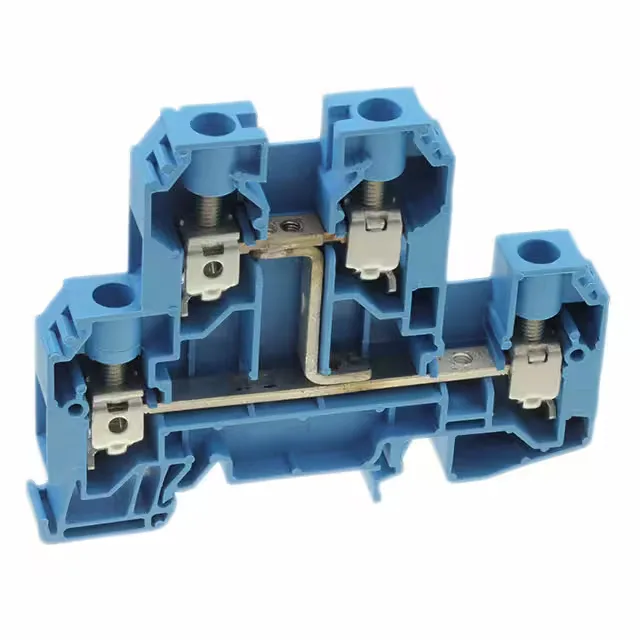

CONN TERM BLK FEED THRU 6-18 AWG
$14.42Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | Feed Through |
| Series | W |
| Voltage - UL | 600V |
| Voltage - IEC | 800V |
| Current - UL | 49 A |
| Current - IEC | 57 A |
| Terminal - width | 9.9mm |
| Wire gauge or range - AWG | 6-18 AWG |
| Wire gauge or range - mm2 | 1.5-16mm² |
| Color | Blue |
| Material - insulation | Thermoplastic, Wemid |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Number of levels | 2; Connected |
| Stripping length | 12mm |
| Termination style | Screw |
| Positions | 4 |
Sourcing this connector
Weidmüller 1186780000 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Weidmüller and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
