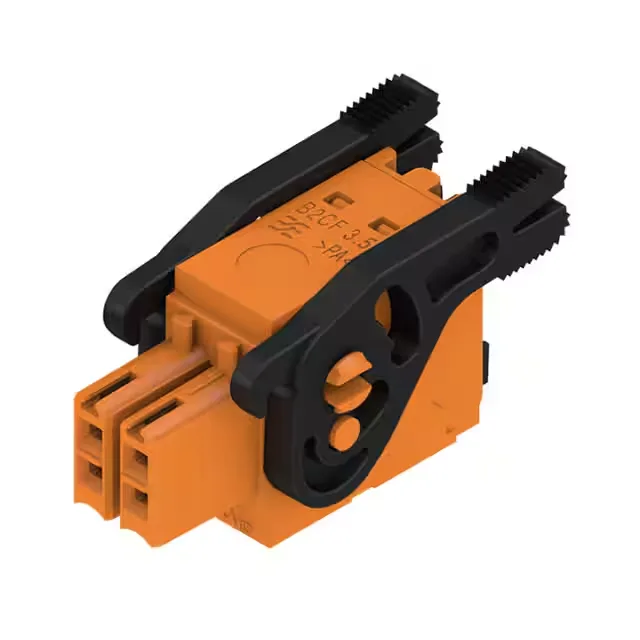

Weidmüller 1278040000
MPN1278040000
Active
TERM BLOCK PLUG 4POS STR 3.5MM
$5.65Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate B2CF
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Omnimate B2CF |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 320 V |
| Current - UL | 9.5 A |
| Current - IEC | 13.4A |
| IP rating | IP20 |
| Plug wire entry | 180° |
| Wire strip length | 10mm |
| Wire gauge or range - AWG | 16-26 AWG |
| Wire gauge or range - mm2 | 0.14-1.5mm² |
All specifications
| Parameter | Value |
|---|---|
| Operating temperature | -50°C ~ 120°C |
| Color | Orange |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation height | 0.598\" (15.19mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Ejector Latches |
| Number of levels | 2 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 4 |
| Positions per level | 2 |
| Contact mating finish | Tin |
