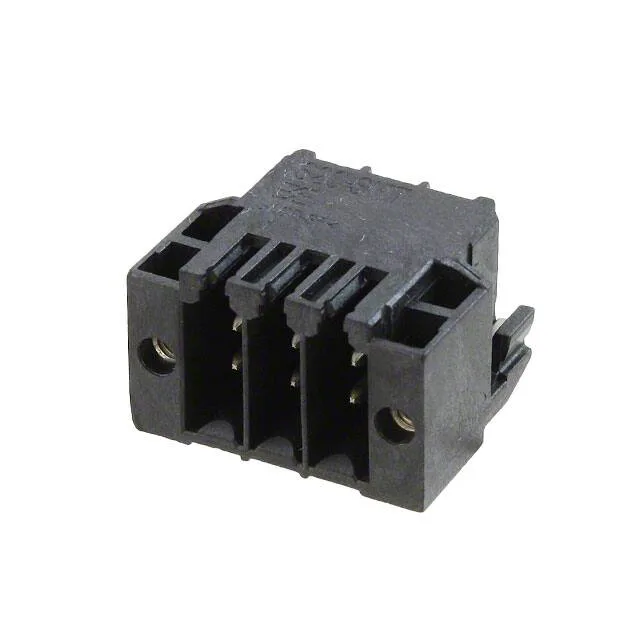

Weidmüller 1289460000
MPN1289460000
Active
TERM BLOCK HDR 6POS 90DEG 3.5MM
$4.01Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate S2C
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Omnimate S2C |
| Mounting | Through Hole |
| Voltage - UL | 150 V |
| Voltage - IEC | 200 V |
| Current - UL | 10 A |
| Current - IEC | 13.4A |
| IP rating | IP20 |
| Operating temperature | -50°C ~ 120°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.425\" (10.80mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Mating Flange, Solder Retention |
| Number of levels | 2 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.126\" (3.20mm) |
| Positions | 6 |
| Positions per level | 3 |
| Contact mating finish | Tin |
