Weidmüller 1473410000
MPN1473410000
Active

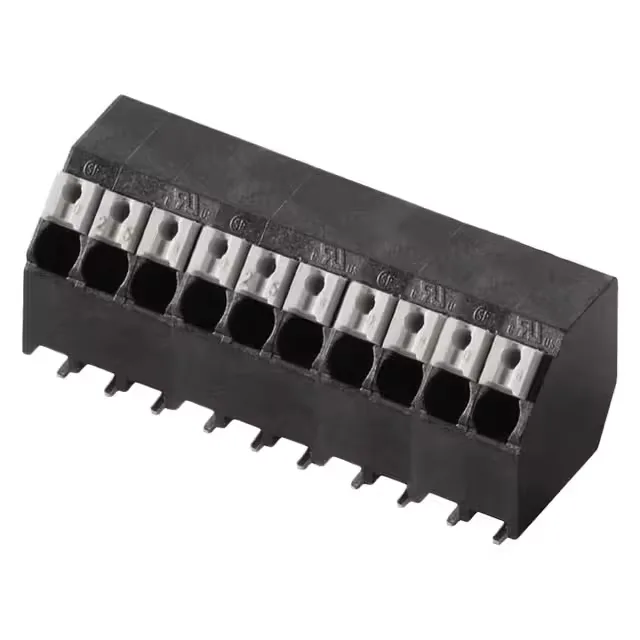

PCB TERMINAL 3.5MM
$8.65Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate LSF-SMD
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Omnimate LSF-SMD |
| Mounting | Surface Mount |
| Voltage | 300 V |
| Current | 12 A |
| Wire gauge | 14-28 AWG |
| Wire termination | Screwless - Push Button Clamp |
| Operating temperature | -50°C ~ 120°C |
| Color | Black |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
| Contact material - plating | Copper Alloy - Tin Plated |
| Pitch | 0.138\" (3.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Number of levels | 1 |
| Mating orientation | 45° (135°) Angle with Board |
| Positions per level | 10 |
