Weidmüller 1601200000
MPN1601200000
Active

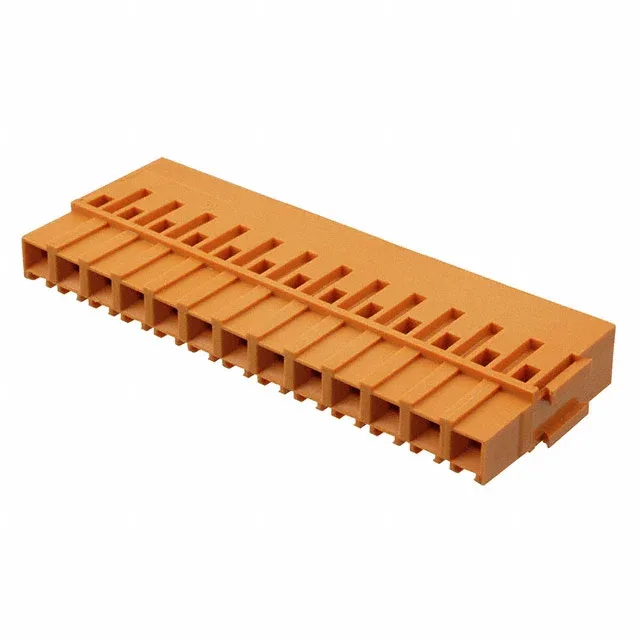

TERM BLOCK PLUG 13POS STR 5.08MM
$5.48Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesUnimate BLA
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug Housing for Female Sockets |
| Series | Unimate BLA |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 250 V |
| Current - UL | 10 A |
| Current - IEC | 14A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 14-22 AWG |
| Wire gauge or range - mm2 | 2.5mm² |
| Operating temperature | -20°C ~ 120°C |
| Color | Orange |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation height | 0.300\" (7.62mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Crimp |
| Positions | 13 |
| Positions per level | 13 |
