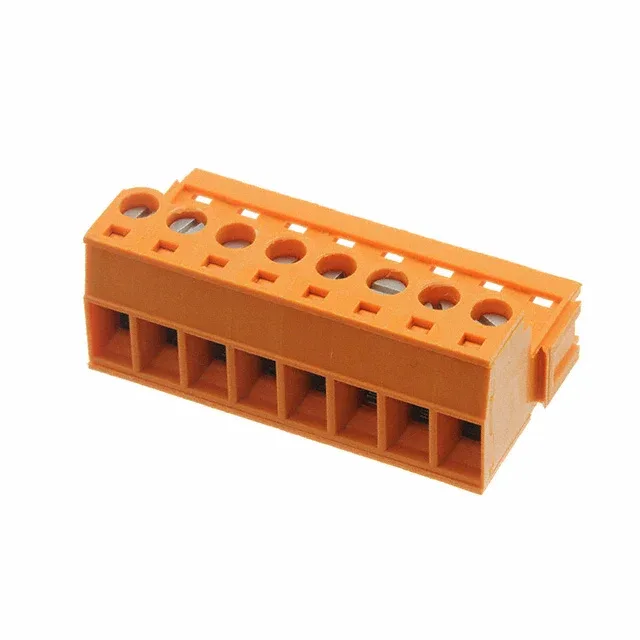

Weidmüller 1627300000
MPN1627300000
Active
TERM BLOCK PLUG 8POS STR 5.08MM
$9.19Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate SL
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Male Pins |
| Series | Omnimate SL |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 400 V |
| Current - UL | 14 A |
| Current - IEC | 21.5A |
| Plug wire entry | 180° |
| Wire strip length | 7mm |
| Wire gauge or range - AWG | 12-26 AWG |
| Wire gauge or range - mm2 | 0.2-2.5mm² |
| Operating temperature | -50°C ~ 100°C |
All specifications
| Parameter | Value |
|---|---|
| Color | Orange |
| Contact material | Copper Alloy |
| Housing material | Polybutylene Terephthalate (PBT) |
| Insulation height | 0.598\" (15.19mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Screw size | M2.5 |
| Torque - screw | 0.4-0.5 Nm (3.5-4.4 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Clamping Yoke (Tension Sleeve) |
| Positions | 8 |
| Positions per level | 8 |
| Contact mating finish | Tin |
