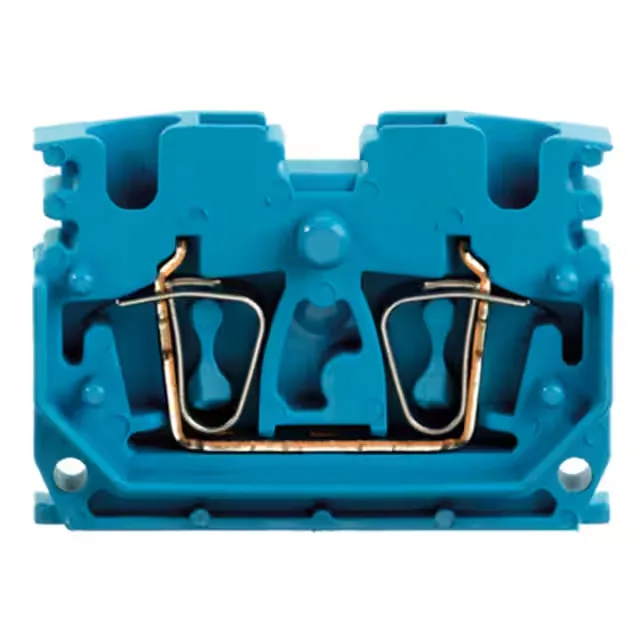

Weidmüller 1704360000
MPN1704360000
Active
TERM BLK MIDDLE 2POS 5.1MM BLUE
$2.78Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesZ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Middle |
| Series | Z |
| Mounting | Direct Mount |
| Voltage - UL | 600 V |
| Voltage - IEC | 800 V |
| Current - UL | 20 A |
| Current - IEC | 24 A |
| Terminal - width | 5.1mm |
| Wire gauge or range - AWG | 12-26 AWG |
| Wire gauge or range - mm2 | 0.5-4mm² |
| Operating temperature | -50°C ~ 120°C |
| Height | 0.945\" (24.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Housing color | Blue |
| Material - insulation | Thermoplastic, Wemid |
| Material flammability rating | UL94 V-0 |
| Length | 1.319\" (33.50mm) |
| Package | Bulk |
| Number of levels | 1 |
| Stripping length | 10mm |
| Termination style | Spring Cage |
| Positions | 2 |
