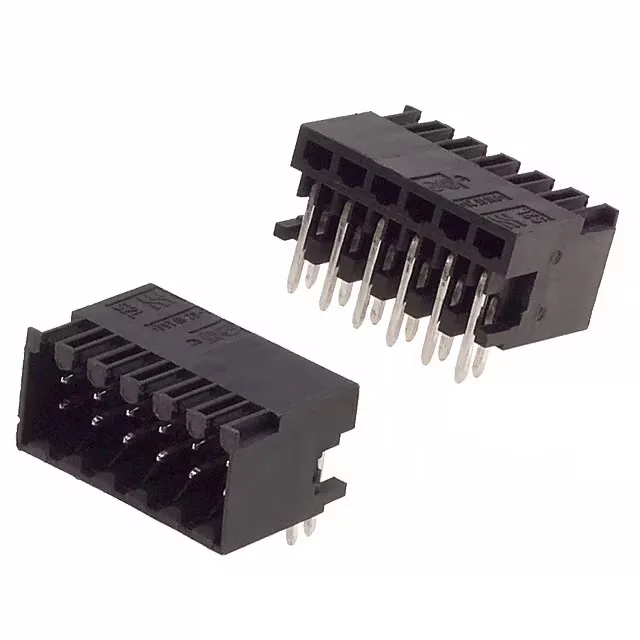

Weidmüller 1728020000
MPN1728020000
Active
TERM BLOCK HDR 12POS 90DEG 3.5MM
$5.03Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate S2L
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Omnimate S2L |
| Mounting | Through Hole |
| Voltage - UL | 150 V |
| Voltage - IEC | 250 V |
| Current - UL | 10 A |
| Current - IEC | 10A |
| IP rating | IP10 |
| Operating temperature | -50°C ~ 100°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polybutylene Terephthalate (PBT) |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.410\" (10.41mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Number of levels | 2 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 12 |
| Positions per level | 6 |
| Contact mating finish | Tin |
