Weidmüller 1748280000
MPN1748280000
Active

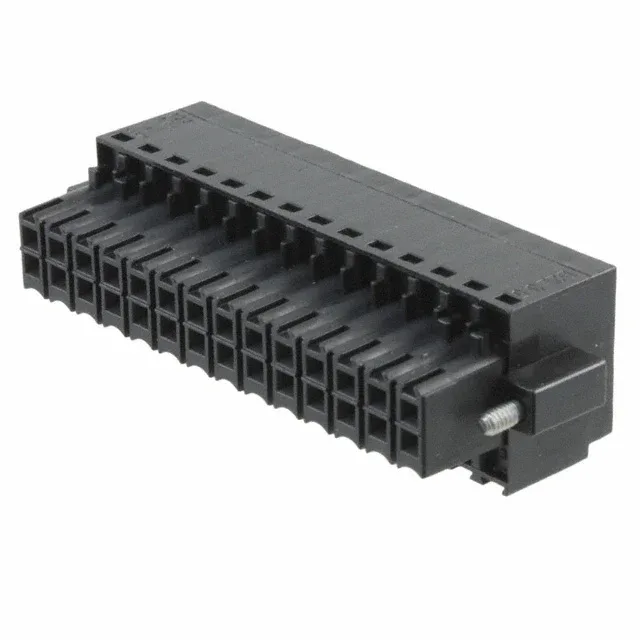

TERM BLOCK PLUG 28POS STR 3.5MM
$18.75Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate B2L
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Omnimate B2L |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 150 V |
| Voltage - IEC | 250 V |
| Current - UL | 10 A |
| Current - IEC | 10.3A |
| IP rating | IP20 |
| Plug wire entry | 180° |
| Wire strip length | 7mm |
| Wire gauge or range - AWG | 16-28 AWG |
| Wire gauge or range - mm2 | 0.2-1mm² |
All specifications
| Parameter | Value |
|---|---|
| Operating temperature | -50°C ~ 100°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polybutylene Terephthalate (PBT) |
| Insulation height | 0.618\" (15.70mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 2 |
| Termination style | Screwless - Spring Cage, Tension Clamp |
| Positions | 28 |
| Positions per level | 14 |
| Contact mating finish | Tin |
