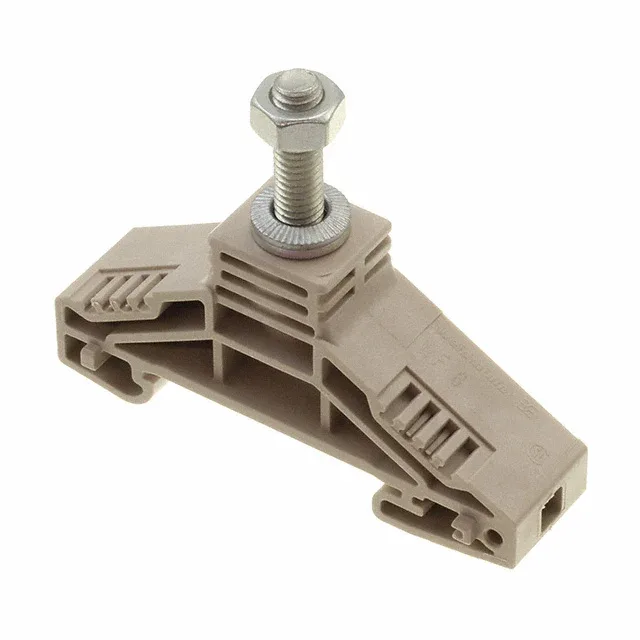

Weidmüller 1780850000
MPN1780850000
Active
TERM BLK POST SGL 1POS 17.8MM
$13.6Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesW
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Post - Single |
| Series | W |
| Mounting | DIN Rail |
| Voltage - UL | 1 kV |
| Voltage - IEC | 1 kV |
| Current - UL | 115 A |
| Current - IEC | 125 A |
| Terminal - width | 17.8mm |
| Wire gauge or range - AWG | 2-14 AWG |
| Wire gauge or range - mm2 | 2.5-35mm² |
| Operating temperature | -50°C ~ 120°C |
| Height | 2.205\" (56.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Housing color | Beige |
| Material - insulation | Thermoplastic, Wemid |
| Material flammability rating | UL94 V-0 |
| Length | 2.638\" (67.00mm) |
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Stud |
| Positions | 1 |
