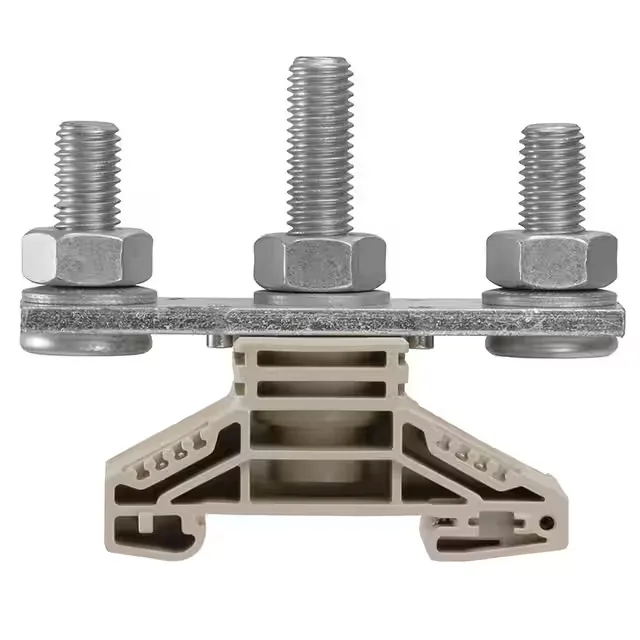

TERM BLK POST TRIPLE 3POS 33.8MM
$16.49Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | Post - Triple |
| Series | W |
| Mounting type | DIN Rail |
| Voltage - UL | 1 kV |
| Voltage - IEC | 1 kV |
| Current - UL | 230 A |
| Current - IEC | 269 A |
| Terminal - width | 33.8mm |
| Wire gauge or range - AWG | 250MCM (kcmil)-10 AWG |
| Wire gauge or range - mm2 | 6-120mm² |
| Operating temperature | -50°C ~ 120°C |
| Height | 2.913\" (74.00mm) |
| Housing color | Beige |
| Material - insulation | Thermoplastic, Wemid |
| Material flammability rating | UL94 V-0 |
| Length | 3.449\" (87.60mm) |
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Stud |
| Positions | 3 |
Sourcing this connector
Weidmüller 1789790000 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Weidmüller and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
