Weidmüller 1793840000
MPN1793840000
Active

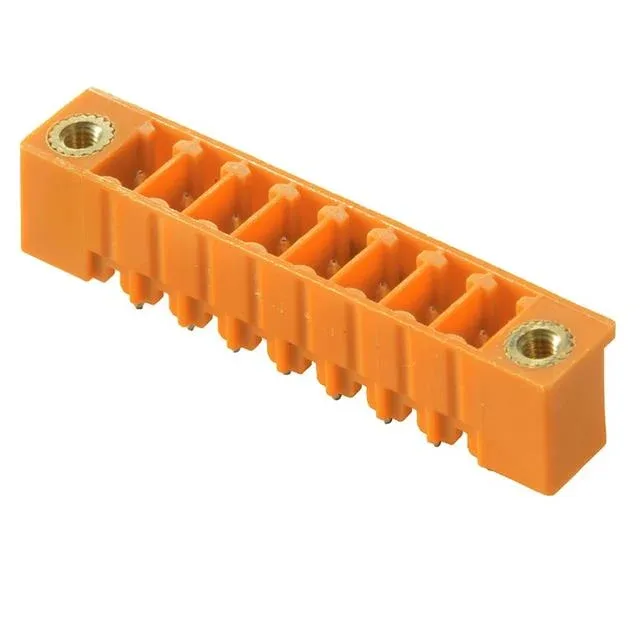

TERM BLOCK HDR 8POS VERT 3.81MM
$4.24Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate SC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Omnimate SC |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 320 V |
| Current - UL | 10 A |
| Current - IEC | 17.5A |
| IP rating | IP20 |
| Operating temperature | -50°C ~ 120°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.362\" (9.20mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Features | Mating and Mounting Flange |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.126\" (3.20mm) |
| Positions | 8 |
| Positions per level | 8 |
| Contact mating finish | Tin |
