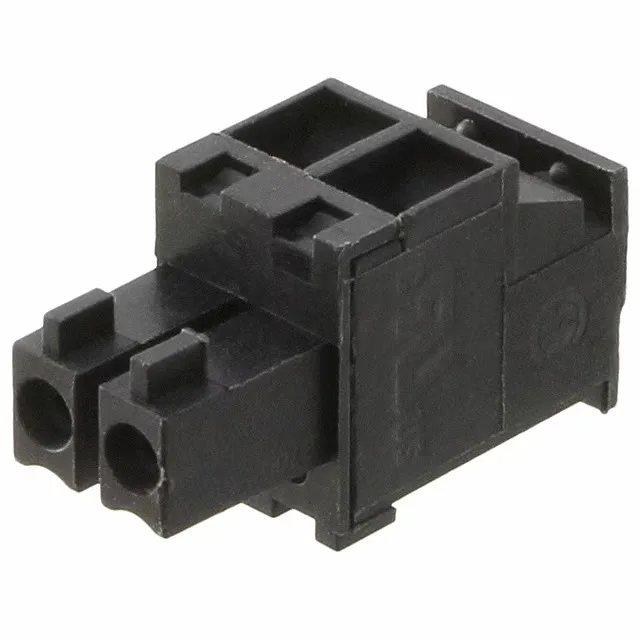

Weidmüller 1798500000
MPN1798500000
Active
TERM BLOCK PLUG 2POS 3.81MM
$2.54Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate BC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Omnimate BC |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 320 V |
| Current - UL | 10 A |
| Current - IEC | 17.5A |
| IP rating | IP20 |
| Plug wire entry | 90° |
| Wire strip length | 7mm |
| Wire gauge or range - AWG | 16-28 AWG |
| Wire gauge or range - mm2 | 0.2-1.5mm² |
All specifications
| Parameter | Value |
|---|---|
| Operating temperature | -50°C ~ 120°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
| Insulation height | 0.411\" (10.44mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Screw size | M2 |
| Torque - screw | 0.2-0.25 Nm (1.7-2.2 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Clamping Yoke (Tension Sleeve) |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
