Weidmüller 1842600000
MPN1842600000
Active

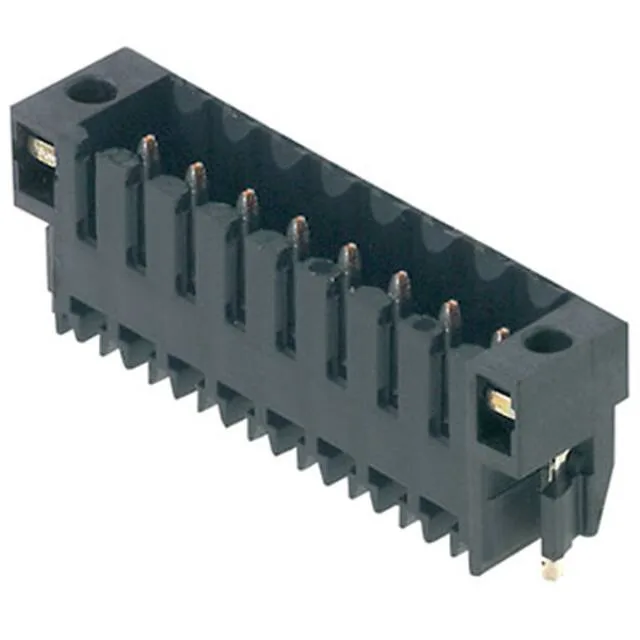

TERM BLOCK HDR 8POS VERT 3.5MM
$5.31Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate SL
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Omnimate SL |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 320 V |
| Current - UL | 10 A |
| Current - IEC | 15A |
| IP rating | IP10 |
| Operating temperature | -50°C ~ 100°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.435\" (11.05mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Mating Flange, Solder Retention |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.126\" (3.20mm) |
| Positions | 8 |
| Positions per level | 8 |
| Contact mating finish | Tin |
