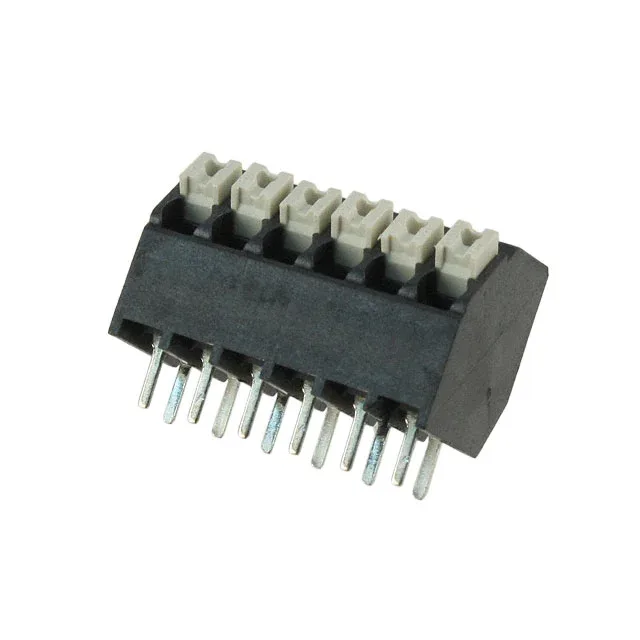

Weidmüller 1885690000
MPN1885690000
Active
TERM BLOCK 6POS 45DEG 3.5MM PCB
$2.76Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate LSF-SMT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Omnimate LSF-SMT |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 12 A |
| Wire gauge | 16-24 AWG |
| Wire termination | Screwless - Push Button Clamp |
| Operating temperature | -50°C ~ 240°C |
| Color | Black |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
| Contact material - plating | Copper Alloy - Tin Plated |
| Pitch | 0.138\" (3.50mm) |
| Package | Tube |
| Number of levels | 1 |
| Mating orientation | 45° (135°) Angle with Board |
| Positions per level | 6 |
