Weidmüller 1888580000
MPN1888580000
Active

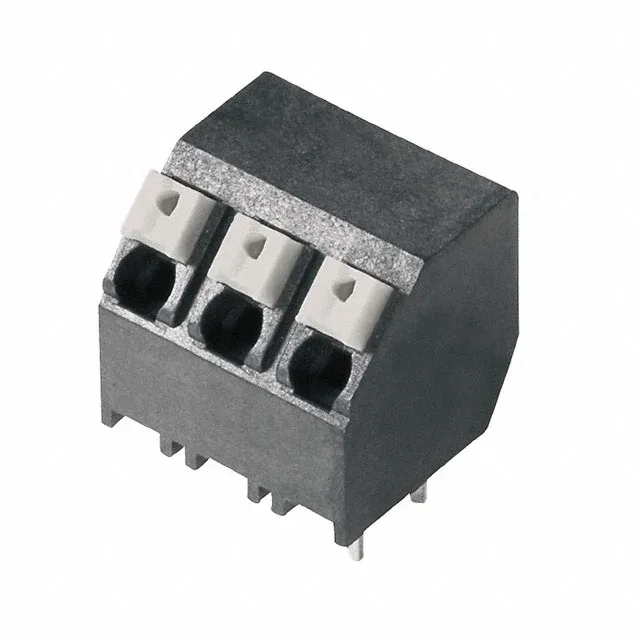

TERM BLK 3P 45DEG 5MM PCB 190/RL
$2.27Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate LSF-SMT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Omnimate LSF-SMT |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 12 A |
| Wire gauge | 16-24 AWG |
| Wire termination | Screwless - Push Button Clamp |
| Operating temperature | -50°C ~ 240°C |
| Color | Black |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
| Contact material - plating | Copper Alloy - Tin Plated |
| Pitch | 0.197\" (5.00mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Number of levels | 1 |
| Mating orientation | 45° (135°) Angle with Board |
| Positions per level | 3 |
