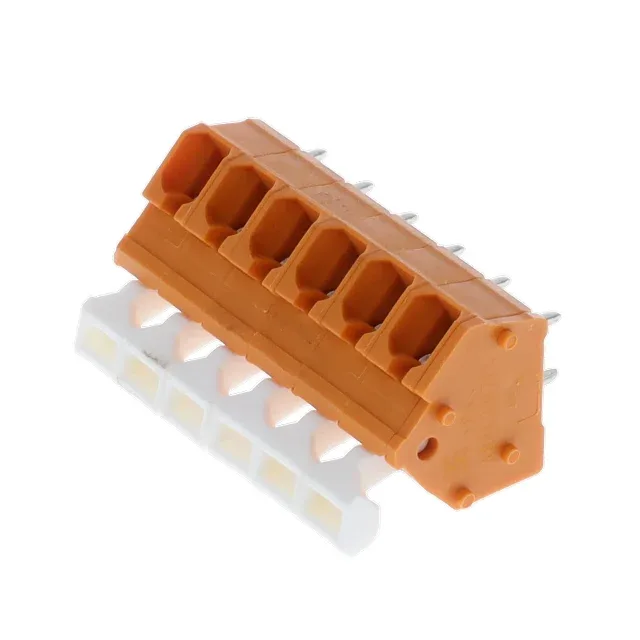

TERM BLOCK 6POS 45DEG 5MM PCB
$3.54Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Omnimate LMZFL |
| Mounting type | Through Hole |
| Voltage | 300 V |
| Current | 15 A |
| Wire gauge | 14-26 AWG |
| Wire termination | Screwless - Spring Cage, Tension Clamp |
| Operating temperature | -50°C ~ 120°C |
| Color | Orange |
| Housing material | Thermoplastic, Wemid |
| Contact material - plating | Electrolytic Copper - Tin Plated |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Interlocking (Side), Lever Actuated |
| Number of levels | 1 |
| Mating orientation | 45° (135°) Angle with Board |
| Positions per level | 6 |
Sourcing this connector
Weidmüller 1914640000 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Weidmüller and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
