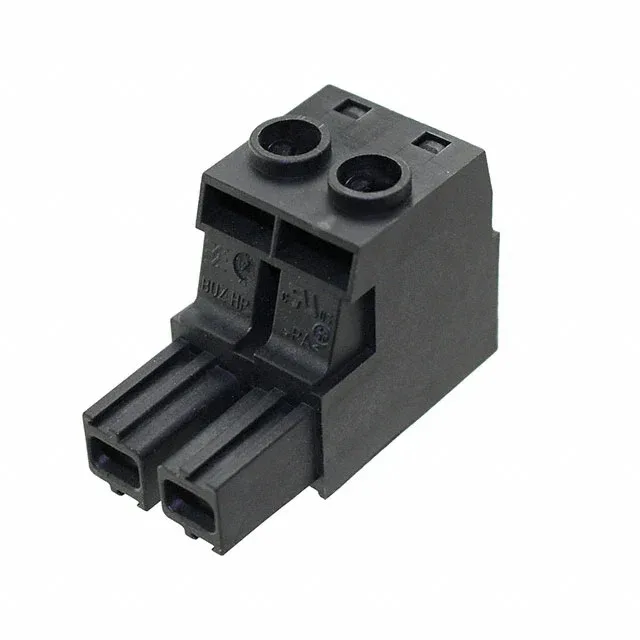

TERM BLOCK PLUG 2POS STR 10.16MM
$7.44Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Omnimate BU |
| Mounting type | Free Hanging (In-Line) |
| Voltage - UL | 600 V |
| Voltage - IEC | 1 kV |
| Current - UL | 60 A |
| Current - IEC | 78.3A |
| Ingress protection | IP20 |
| Plug wire entry | 180° |
| Wire strip length | 12mm |
| Wire gauge or range - AWG | 4-22 AWG |
| Wire gauge or range - mm2 | 0.2-16mm² |
| Operating temperature | -50°C ~ 130°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
| Insulation height | 1.205\" (30.61mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.400\" (10.16mm) |
| Package | Bulk |
| Screw size | M4 |
| Torque - screw | 1.2-1.5 Nm (10.6-13.3 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Clamping Yoke (Tension Sleeve) |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Silver |
Sourcing this connector
Weidmüller 1924540000 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Weidmüller and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
