Weidmüller 1928860000
MPN1928860000
Active

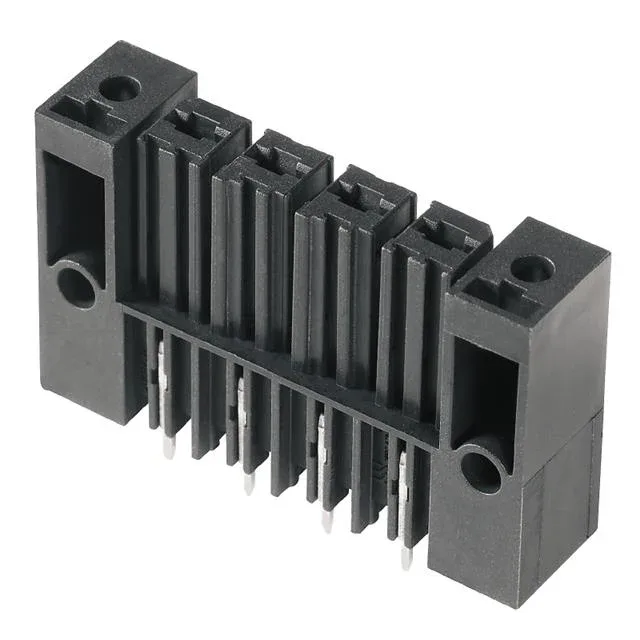

TERM BLOCK HDR 4POS VERT 7.62MM
$8.88Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate BV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Blade Sockets |
| Series | Omnimate BV |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 1 kV |
| Current - UL | 35 A |
| Current - IEC | 41A |
| IP rating | IP20 |
| Operating temperature | -50°C ~ 130°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 1.102\" (27.99mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.300\" (7.62mm) |
| Package | Bulk |
| Features | Mating and Mounting Flange |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
