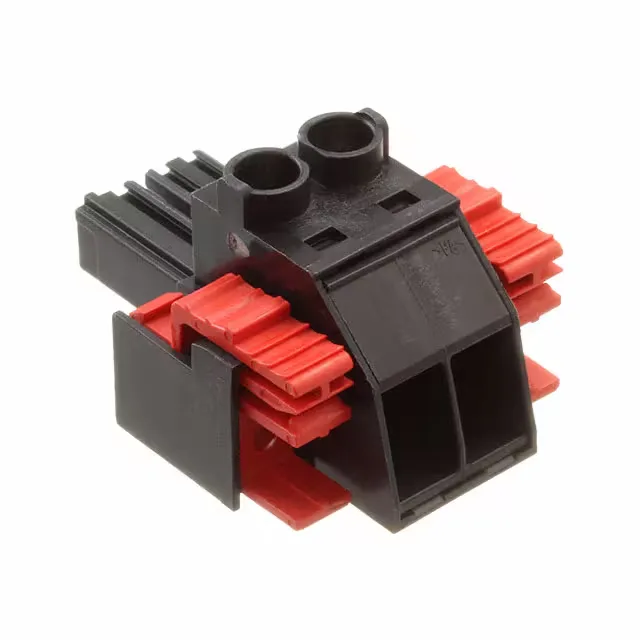

Weidmüller 1930050000
MPN1930050000
Active
TERM BLOCK PLUG 2POS STR 7.62MM
$5.79Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate BV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Blade Sockets |
| Series | Omnimate BV |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 600 V |
| Voltage - IEC | 1 kV |
| Current - UL | 40.5 A |
| Current - IEC | 41A |
| IP rating | IP20 |
| Plug wire entry | 180° |
| Wire strip length | 12mm |
| Wire gauge or range - AWG | 8-24 AWG |
| Wire gauge or range - mm2 | 0.2-6mm² |
All specifications
| Parameter | Value |
|---|---|
| Operating temperature | -50°C ~ 125°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
| Insulation height | 0.909\" (23.09mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.300\" (7.62mm) |
| Package | Bulk |
| Features | Latch Lock, Mating Flange |
| Screw size | M3 |
| Torque - screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Clamping Yoke (Tension Sleeve) |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
