Weidmüller 1968650000
MPN1968650000
Active

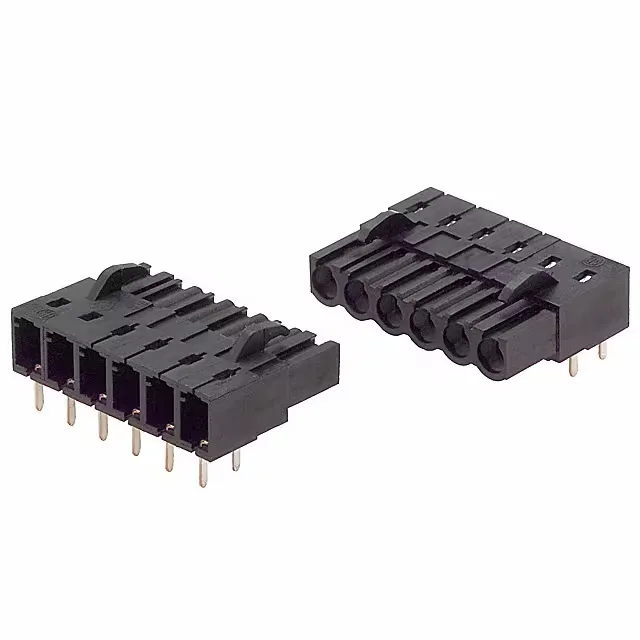

TERM BLOCK HDR 6POS 90DEG 5.08MM
$4.7Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate BL
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Female Sockets |
| Series | Omnimate BL |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 400 V |
| Current - UL | 15 A |
| Current - IEC | 23A |
| Operating temperature | -50°C ~ 100°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation height | 0.406\" (10.31mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Retention Latches |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.126\" (3.20mm) |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
