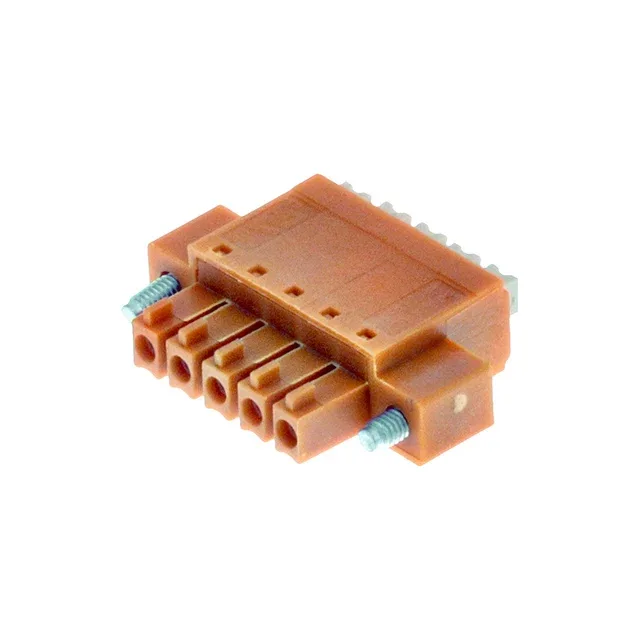

Weidmüller 1970380000
MPN1970380000
Active
TERM BLOCK PLUG 5POS STR 3.81MM
$6.03Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate BC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Omnimate BC |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 320 V |
| Current - UL | 10 A |
| Current - IEC | 17.5A |
| IP rating | IP20 |
| Plug wire entry | 180° |
| Wire strip length | 9mm |
| Wire gauge or range - AWG | 16-26 AWG |
| Wire gauge or range - mm2 | 0.14-1.5mm² |
All specifications
| Parameter | Value |
|---|---|
| Operating temperature | -50°C ~ 120°C |
| Color | Orange |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
| Insulation height | 0.311\" (7.90mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Features | Mating Flange, Push Button Actuated |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
