Weidmüller 2439680000
MPN2439680000
Active

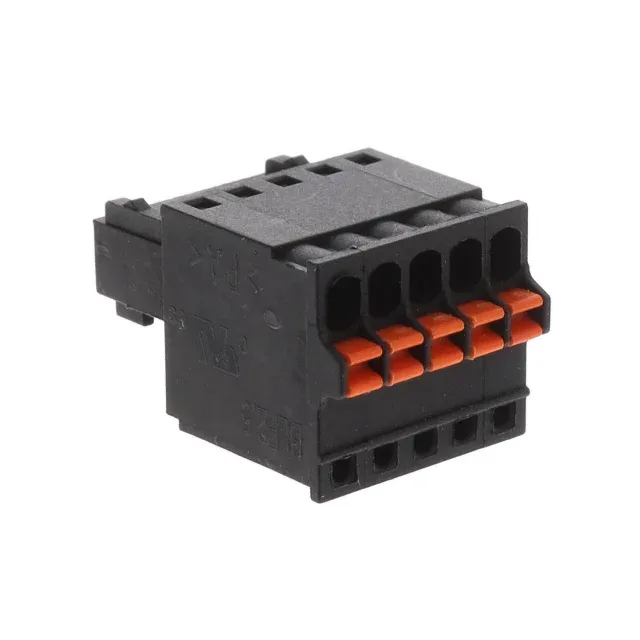

PCB PLUG-IN CONNECTOR, 2.50 MM,
$7.23Ref. price · indicative, final on quote
SeriesOmnimate BL
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Omnimate BL |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 150 V |
| Voltage - IEC | 320 V |
| Current - UL | 5 A |
| Current - IEC | 6A |
| IP rating | IP20 |
| Plug wire entry | 180° |
| Wire strip length | 8mm |
| Wire gauge or range - AWG | 20-28 AWG |
| Wire gauge or range - mm2 | 0.08-0.5mm² |
All specifications
| Parameter | Value |
|---|---|
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.463\" (11.76mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.098\" (2.50mm) |
| Package | Box |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
