Weidmüller 2540580000
MPN2540580000
Active

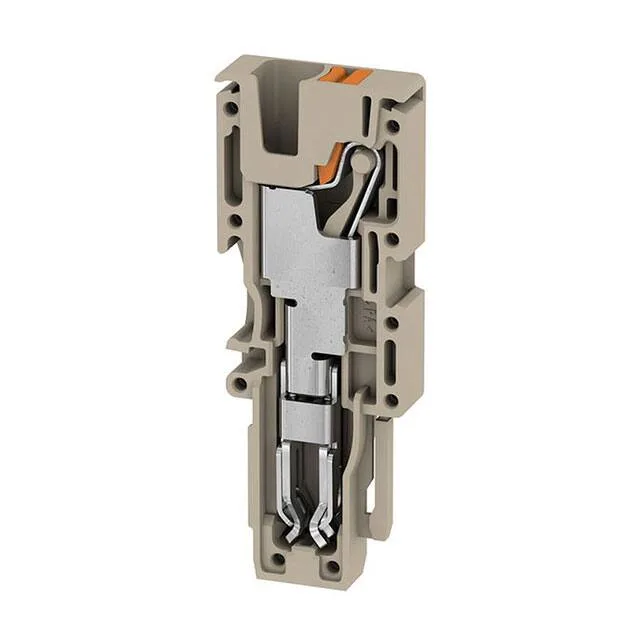

PLUG (TERMINAL), PUSH IN, 4 MM,
$3.24Ref. price · indicative, final on quote
SeriesA
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | A |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 600 V |
| Voltage - IEC | 690 V |
| Current - UL | 30 A |
| Current - IEC | 32A |
| Plug wire entry | 180° |
| Wire strip length | 10mm |
| Wire gauge or range - AWG | 10-26 AWG |
| Wire gauge or range - mm2 | 0.5-4mm² |
| Operating temperature | -60°C ~ 130°C |
All specifications
| Parameter | Value |
|---|---|
| Color | Beige |
| Housing material | Thermoplastic, Wemid |
| Insulation height | 0.748\" (19.00mm) |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Features | Interlocking (Side) |
| Number of levels | 1 |
| Termination style | Screwless - Push-In Spring |
| Positions | 1 |
| Positions per level | 1 |
