Weidmüller 2647020000
MPN2647020000
Active

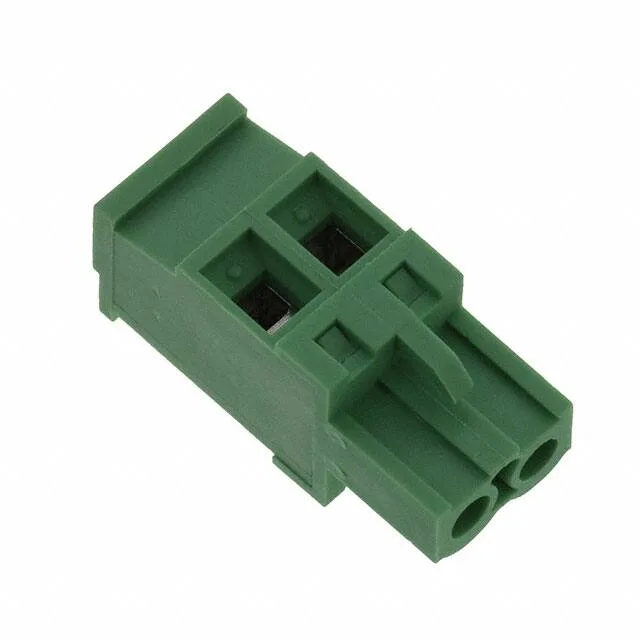

TERM BLK PLUG 2POS 90DEG 5.08MM
$3.22Ref. price · indicative, final on quote
SeriesOmnimate CPS
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Omnimate CPS |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 630 V |
| Current - UL | 15 A |
| Current - IEC | 15A |
| Plug wire entry | 90° |
| Wire strip length | 7mm |
| Wire gauge or range - AWG | 12-26 AWG |
| Wire gauge or range - mm2 | 0.2-4mm² |
| Operating temperature | -40°C ~ 105°C |
All specifications
| Parameter | Value |
|---|---|
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 1.020\" (25.91mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Retention Latches (Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.5-0.55 Nm (4.4-4.8 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Clamping Yoke (Tension Sleeve) |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
