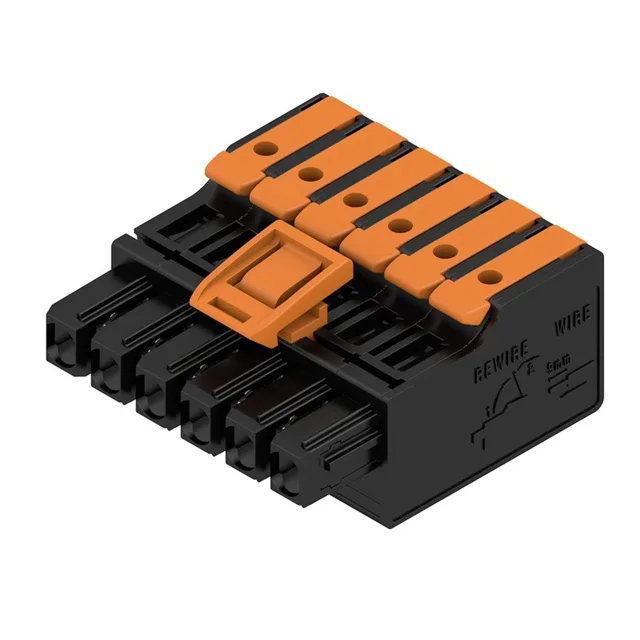

Weidmüller 2741710000
MPN2741710000
Active
PCB CONNECTOR, PLUG, 5.00MM PITC
$8.18Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate 4.0 MPS
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Omnimate 4.0 MPS |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 400 V |
| Current - UL | 18.5 A |
| IP rating | IP20 |
| Plug wire entry | 180° |
| Wire strip length | 9mm |
| Wire gauge or range - AWG | 14-18 AWG |
| Wire gauge or range - mm2 | 0.5-2.5mm² |
| Operating temperature | -50°C ~ 100°C |
All specifications
| Parameter | Value |
|---|---|
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Box |
| Features | Latch Lock |
| Number of levels | 1 |
| Termination style | Screwless - Snap In |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
