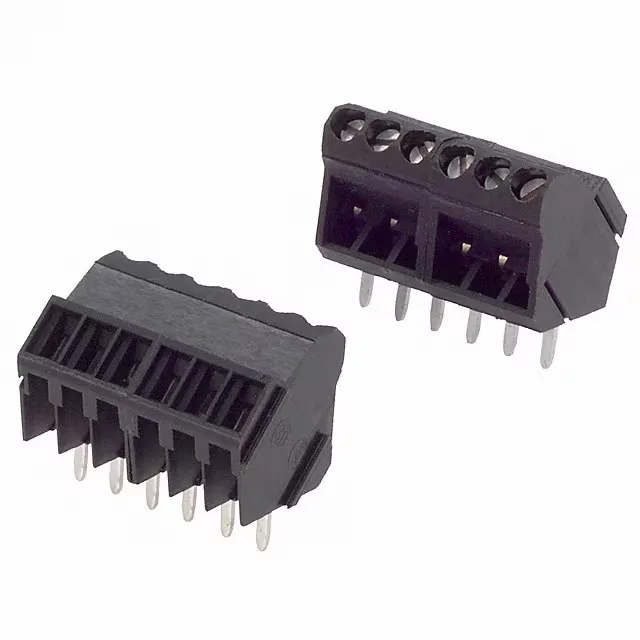

Weidmüller 7940102888
MPN7940102888
Active
TERM BLOCK 6POS 45DEG 3.5MM PCB
$4.8Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate LM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Omnimate LM |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 10 A |
| Wire gauge | 14-22 AWG |
| Wire termination | Screw - Clamping Yoke, Tension Sleeve |
| Operating temperature | -20°C ~ 100°C |
| Color | Black |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Contact material - plating | Copper Tin Alloy - Tin Plated |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw thread | M2 |
| Torque - screw | 0.2-0.25 Nm (1.7-2.2 Lb-In) |
| Number of levels | 1 |
| Mating orientation | 45° (135°) Angle with Board |
| Positions per level | 6 |
