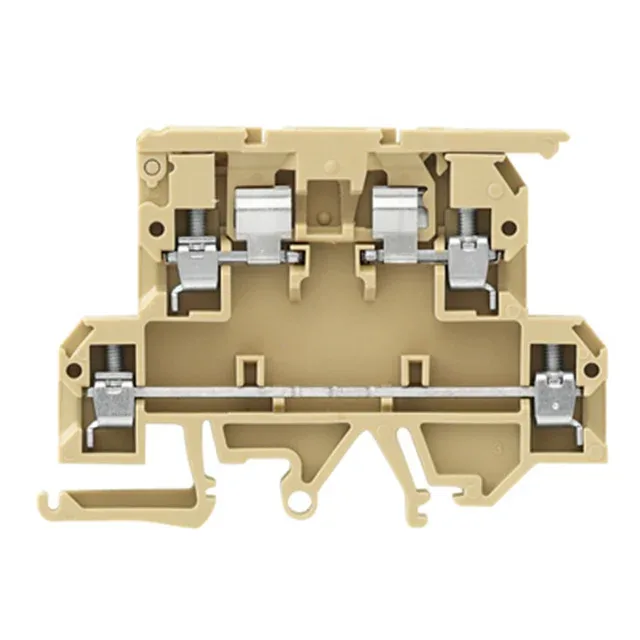

Weidmüller 9503350000
MPN9503350000
Active
CONN TERM BLK DISCONN 12-22AWG
$11.95Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesW
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Disconnect, Feed Through |
| Series | W |
| Fuse type | 5mm x 20mm, 5mm x 25mm |
| Disconnect type | Fuse, Lever |
| Voltage - UL | 300V |
| Voltage - IEC | 500V |
| Current - UL | 10 A |
| Current - IEC | 6.3 A |
| Terminal - width | 8.0mm |
| Wire gauge or range - AWG | 12-22 AWG |
| Wire gauge or range - mm2 | 0.5-4mm² |
| Color | Beige |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-2 |
| Package | Bulk |
| Number of levels | 2 |
| Stripping length | 9mm |
| Termination style | Screw |
| Positions | 4 |
