Weidmüller 9993320000
MPN9993320000
Active

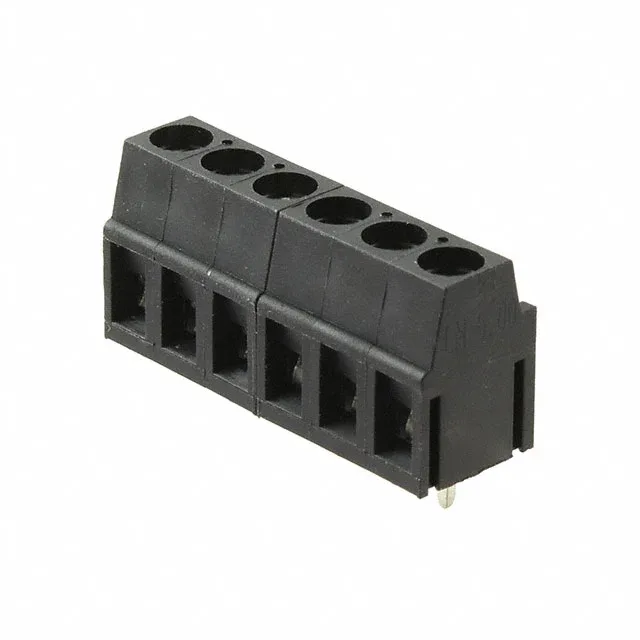

TERM BLK 6POS SIDE ENTRY 5MM PCB
$4.24Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate LM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Omnimate LM |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 20 A |
| Wire gauge | 14-24 AWG |
| Wire termination | Screw - Clamping Yoke, Tension Sleeve |
| Operating temperature | -50°C ~ 120°C |
| Color | Black |
| Housing material | Thermoplastic, Wemid |
| Contact material - plating | Copper Alloy - Tin Plated |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw thread | M2.5 |
| Torque - screw | 0.4-0.5 Nm (3.5-4.4 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 6 |
