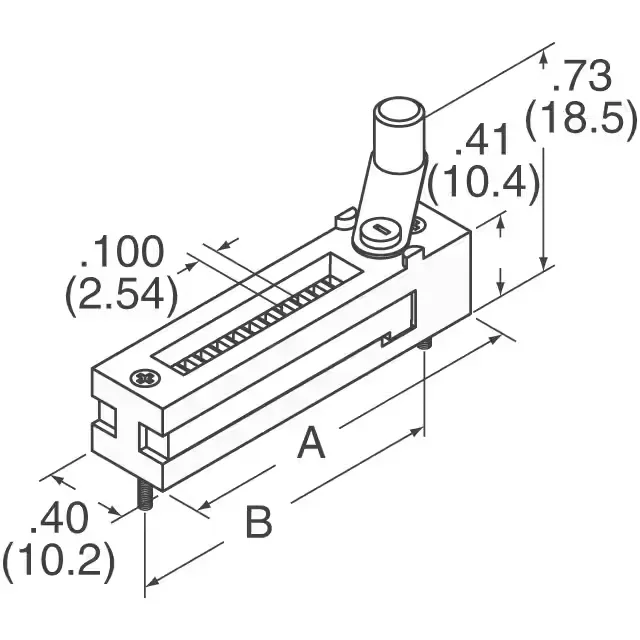

3M 210-2599-00-0602
MPN210-2599-00-0602
Active
CONN SOCKET SIP ZIF 10POS GOLD
$45.51Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesTextool™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | SIP, ZIF (ZIP) |
| Series | Textool™ |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polysulfone (PSU), Glass Filled |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.130\" (3.30mm) |
| Contact finish thickness - post | 30.0µin (0.76µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
| Number of positions or pins | 10 (1 x 10) |
