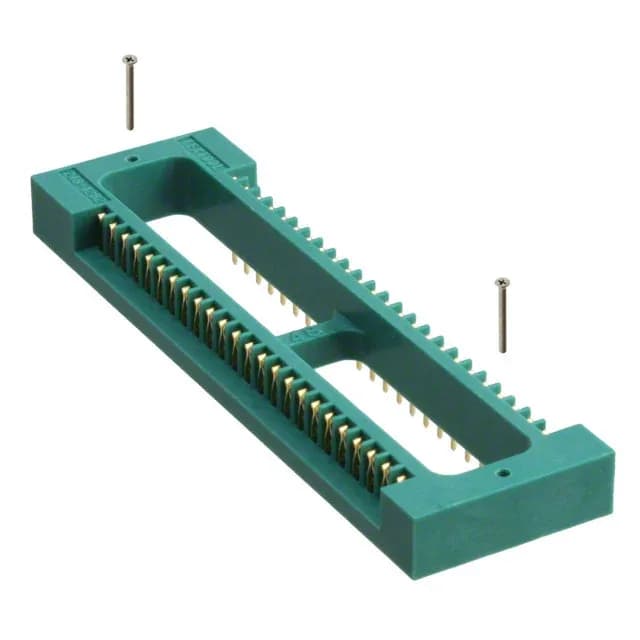

3M 248-1282-29-0602J
MPN248-1282-29-0602J
Active
RECEPTACLE DIP SOCKET 48POS .6"
$40.52Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesTextool™
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Textool™ |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polysulfone (PSU), Glass Filled |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pin count | 48 |
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.130\" (3.30mm) |
| Convert to (Adapter end) | DIP, 0.6\" (15.24mm) Row Spacing |
| Convert from (Adapter end) | DIP, 0.6\" (15.24mm) Row Spacing |
| Contact finish thickness - post | 30.0µin (0.76µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
