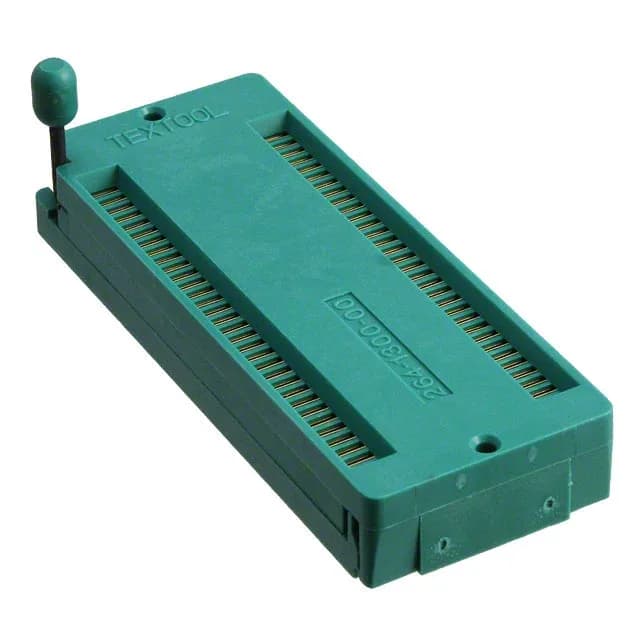

3M 264-1300-00-0602J
MPN264-1300-00-0602J
Active
CONN IC DIP SOCKET ZIF 64POS GLD
$45.15Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesTextool™
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, ZIF (ZIP), 0.9\" (22.86mm) Row Spacing |
| Series | Textool™ |
| Mounting | Connector |
| Current rating | 1 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polysulfone (PSU), Glass Filled |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Press-Fit |
All specifications
| Parameter | Value |
|---|---|
| Pitch - post | 0.070\" (1.78mm) |
| Pitch | 0.070\" (1.78mm) |
| Contact resistance | 15mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.110\" (2.78mm) |
| Contact finish thickness - post | 30.0µin (0.76µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
| Number of positions or pins | 64 (2 x 32) |
