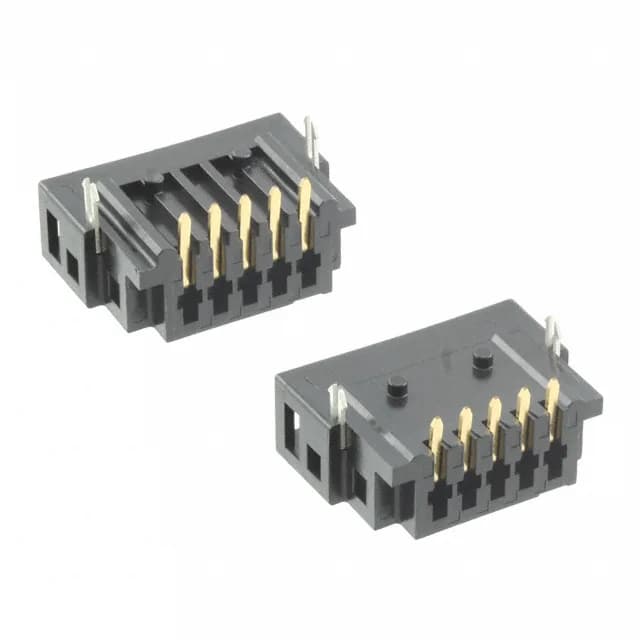

3M 35605-5153-A00PE
MPN35605-5153-A00PE
Active
CONN HEADER R/A 5POS 3MM
$6.12Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPower Clamp, 356
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Power Clamp, 356 |
| Type | Male Blade |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Operating temperature | -20°C ~ 75°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.366\" (9.30mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide, Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 5 |
| Contact finish - post | Gold |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
