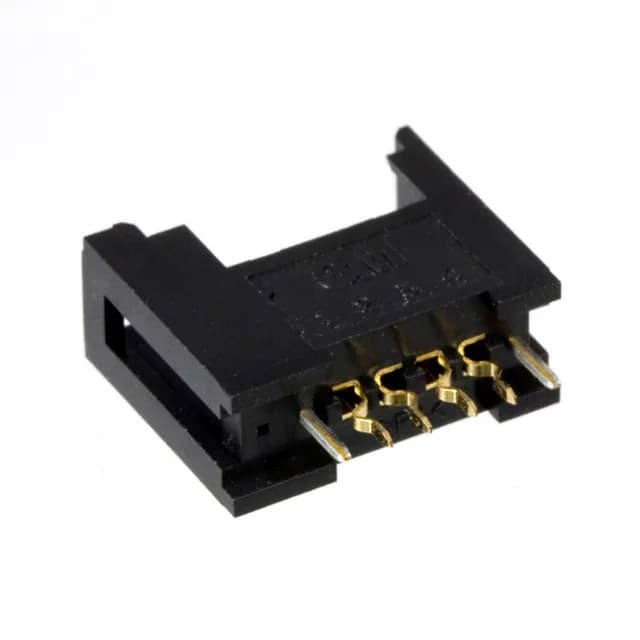

3M 37204-62B3-004PL
MPN37204-62B3-004PL
Active
CONN RCPT 4POS 0.079 GOLD PCB
$2.44Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMini-Clamp I, 372
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-Clamp I, 372 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 32V |
| Current rating | 3A |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.512\" (13.00mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 4 |
| Contact finish - post | Gold |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
