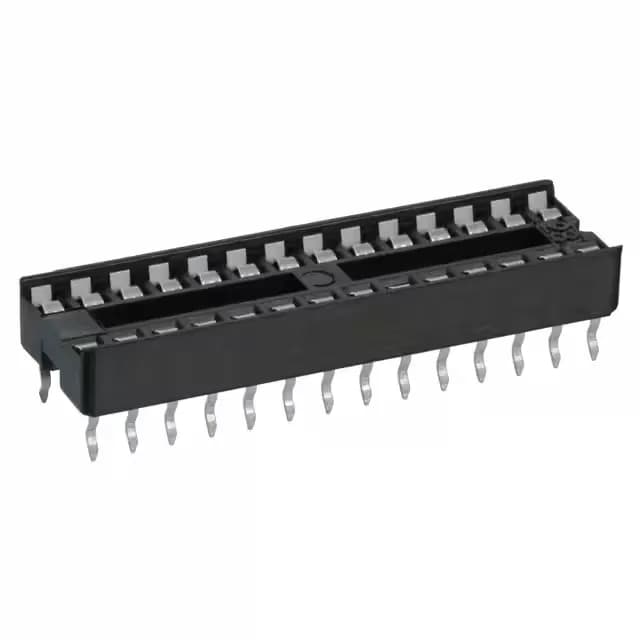

3M 4828-3004-CP
MPN4828-3004-CP
Active
CONN IC DIP SOCKET 28POS TIN
$1.06Ref. price · indicative, final on quote
RoHSRoHS Compliant
Series4800
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 4800 |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -25°C ~ 85°C |
| Housing material | Polyester, Glass Filled |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 35.0µin (0.90µm) |
| Contact finish thickness - mating | 35.4µin (0.90µm) |
| Number of positions or pins | 28 (2 x 14) |
