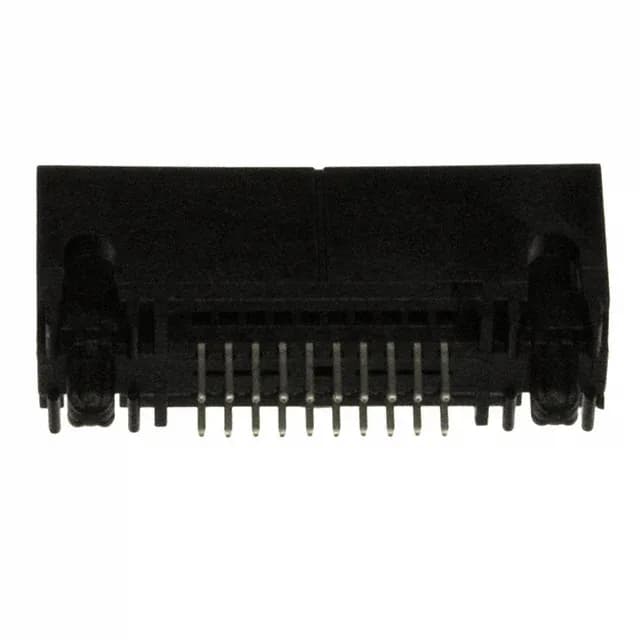

3M 81020-600203-RB
MPN81020-600203-RB
Active
CONN HEADER VERT 20POS 1.27MM
$6.97Ref. price · indicative, final on quote
RoHSRoHS Compliant
Series810
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 810 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 0.75A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.405\" (10.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.092\" (2.34mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.140\" (3.56mm) |
| Contact finish thickness - post | 250.0µin (6.35µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
