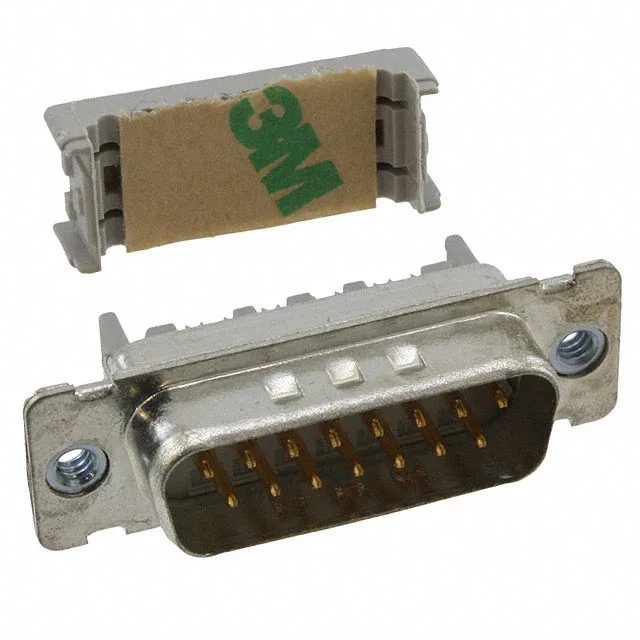

3M 8215-6003
MPN8215-6003
Active
CONN D-SUB PLUG 15P PNL MNT IDC
$10.87Ref. price · indicative, final on quote
RoHSRoHS Compliant
Series8200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 8200 |
| Type | Signal |
| Mounting | Panel Mount |
| Connector type | Plug, Male Pins |
| Current rating | 1A |
| Shell size, connector layout | 2 (DA, A) |
| Operating temperature | -55°C ~ 105°C |
| Color | Gray |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Feed Through, Grounding Indents |
| Termination | IDC, Ribbon Cable |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Positions | 15 |
| Contact finish thickness | 30.0µin (0.76µm) |
