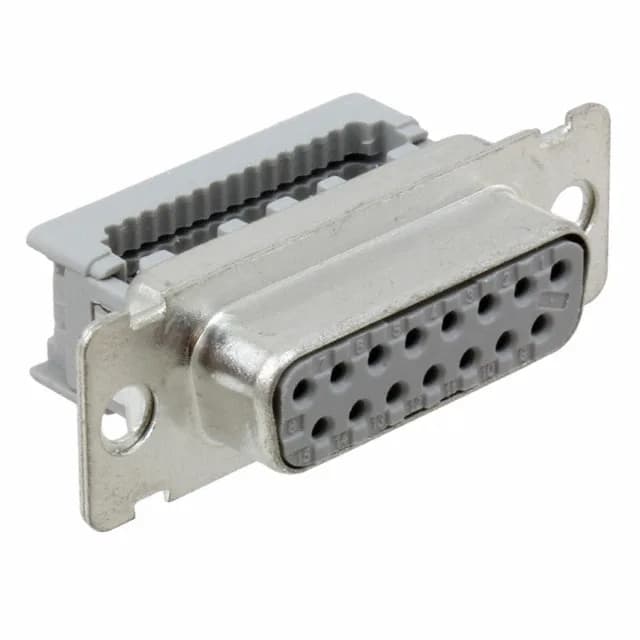

3M 8315-8000
MPN8315-8000
Active
CONN D-SUB RCPT 15P PNL MNT IDC
$9.85Ref. price · indicative, final on quote
RoHSRoHS Compliant
Series8300
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 8300 |
| Type | Signal |
| Mounting | Panel Mount |
| Connector type | Receptacle, Female Sockets |
| Current rating | 1A |
| Wire gauge | 26-28 AWG |
| Shell size, connector layout | 2 (DA, A) |
| Operating temperature | -55°C ~ 105°C |
| Color | Gray |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Shell material, finish | Steel, Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Feed Through |
| Termination | IDC, Ribbon Cable |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 15 |
| Contact finish thickness | 30.0µin (0.76µm) |
