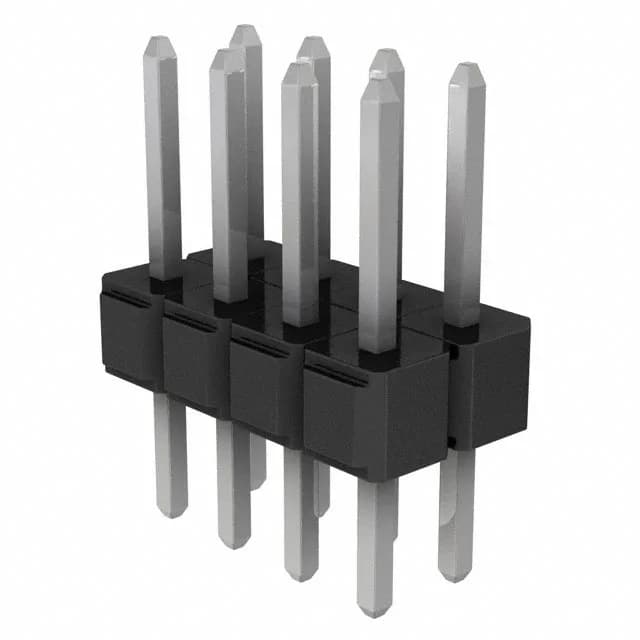

3M 929836-09-04
MPN929836-09-04
Active
CONN HEADER VERT 8POS 2.54MM
$0.92Ref. price · indicative, final on quote
RoHSRoHS non-compliant
Series929
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 929 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 2.5A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.145\" (3.68mm) |
| Overall contact length | 0.480\" (12.19mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.235\" (5.97mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
