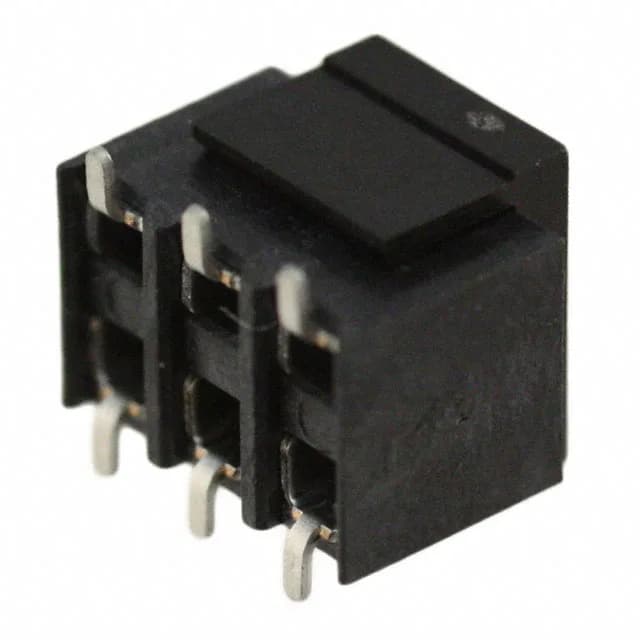

3M 966206-2000-AR-PR
MPN966206-2000-AR-PR
Active
CONN RCPT 6POS 0.1 GOLD SMD
$2.41Ref. price · indicative, final on quote
RoHSRoHS Compliant
Series966
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 966 |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Voltage rating | 1000VDC |
| Current rating | 2A |
| Operating temperature | -25°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 40.0µin (1.02µm) |
| Contact finish thickness - mating | Flash |
