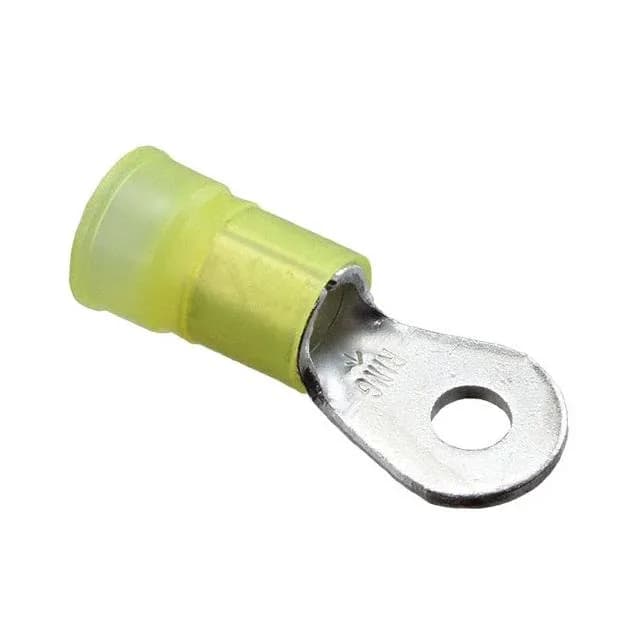

3M MN4-14RK
MPNMN4-14RK
Active
CONN RING CIRC 4AWG #1/4 CRIMP
$2.68Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesScotchlok™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Scotchlok™ |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 4 AWG |
| Color | Yellow |
| Contact material | Copper, ETP |
| Width - outer edges | 0.680\" (17.27mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Brazed Seam |
| Thickness | 0.075\" (1.91mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 1/4 Stud |
| Contact finish | Tin |
| Length - overall | 1.740\" (44.20mm) |
| Insulation diameter | 0.515\" (13.08mm) |
