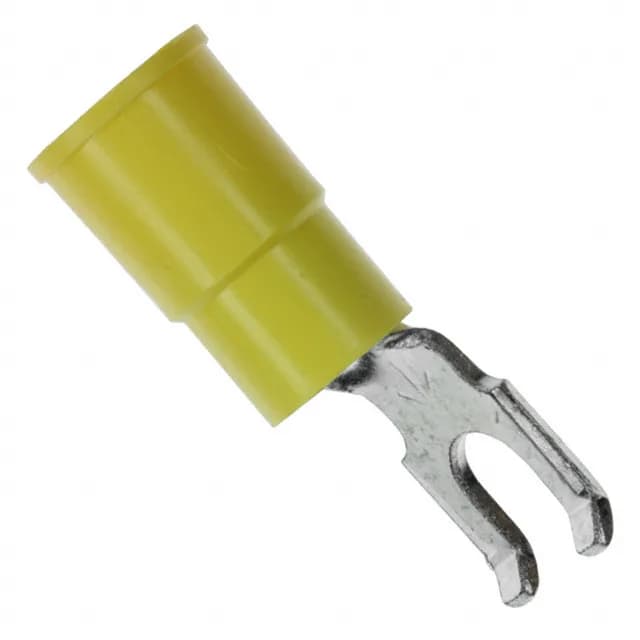

3M MVU10-8FFBK
MPNMVU10-8FFBK
Active
CONN SPADE TERM 10-12AWG #8 YEL
$0.95Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesScotchlok™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Scotchlok™ |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Flanged |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper, ETP |
| Width - outer edges | 0.320\" (8.13mm) |
| Material - insulation | Vinyl |
| Package | Bulk |
| Features | Butted Seam |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 1.030\" (26.16mm) |
| Insulation diameter | 0.250\" (6.35mm) |
| Length - termination | 0.550\" (13.97mm) |
| Length - ring center to termination | 0.290\" (7.37mm) |
