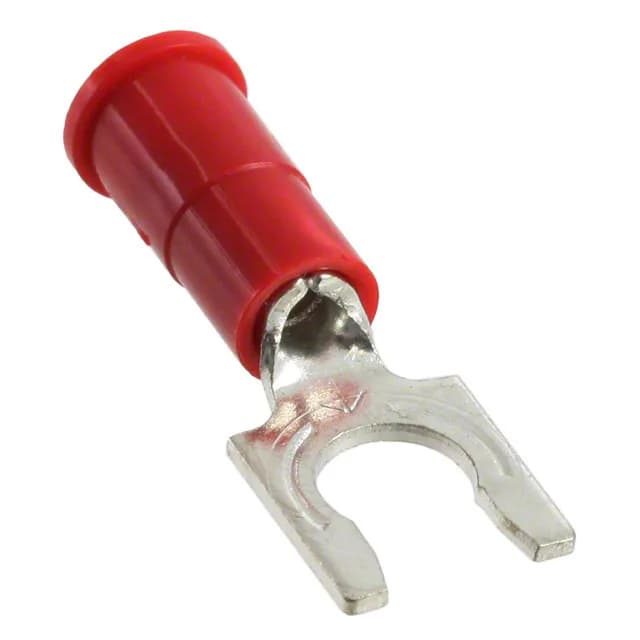

3M MVU18-10FLK
MPNMVU18-10FLK
Active
CONN SPADE TERM 18-22AWG #10 RED
$0.66Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesScotchlok™
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Scotchlok™ |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 18-22 AWG |
| Color | Red |
| Contact material | Copper, ETP |
| Width - outer edges | 0.320\" (8.13mm) |
| Material - insulation | Vinyl |
| Package | Bulk |
| Features | Butted Seam |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.880\" (22.35mm) |
| Insulation diameter | 0.145\" (3.68mm) |
| Length - termination | 0.450\" (11.43mm) |
| Length - ring center to termination | 0.250\" (6.35mm) |
