Abracon LLC ARJ11G-MBSD-LU2
MPNARJ11G-MBSD-LU2
Active

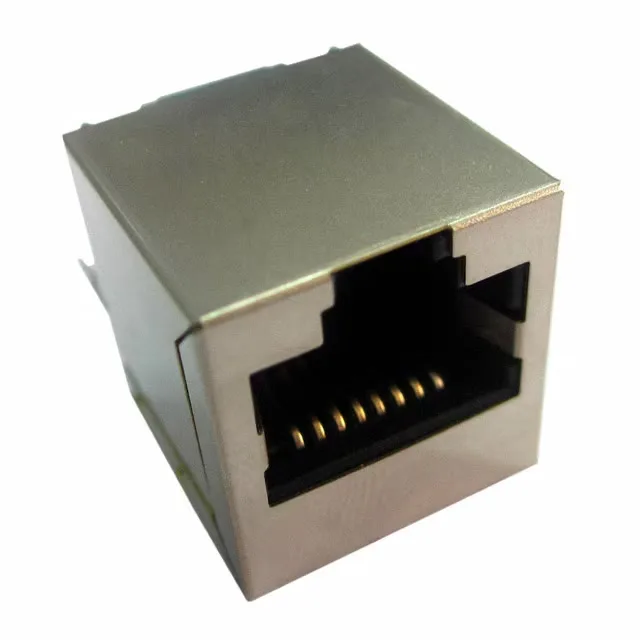

CONN JACK 1PORT 100 BASE-T PCB
$5.49Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesARJ11G
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ARJ11G |
| Mounting | Through Hole |
| Connector type | RJ45 |
| Operating temperature | 0°C ~ 70°C |
| LED color | Does Not Contain LED |
| Height above board | 0.669\" (16.99mm) |
| Package | Tray |
| Features | Board Lock |
| Shielding | Shielded |
| Orientation | Vertical |
| Termination | Solder |
| Applications | 10/100 Base-T |
| Tab direction | User Selectable |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 6.00µin (0.152µm) |
| Number of cores per jack | 5 |
