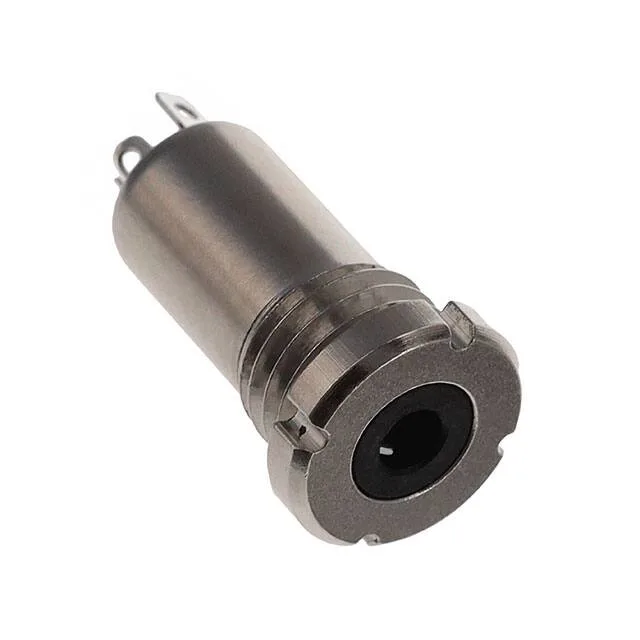

Adam Tech ASJ-203C-M-WP-HDW
MPNASJ-203C-M-WP-HDW
Active
AUDIO JACK, WATERPROOF
$3.91Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesASJ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ASJ |
| Mounting | Panel Mount |
| Connector type | Phone Jack |
| Voltage - rated | 30VDC |
| Current rating | 500 mA |
| Operating temperature | -20°C ~ 70°C |
| Body color | Black |
| Contact material | Steel Alloy |
| Housing material | Polyamide (PA10T), Nylon 10T |
| Mating length (Depth) | 0.433\" (11.00mm) |
| Contact material - plating | Silver |
| Gender | Female |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mounting Hardware |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Signal lines | Stereo (4 Conductor, TRRS) |
| Actual diameter | 0.102\" (2.60mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 4 Conductors, 4 Contacts |
| Industry recognized mating diameter | 2.50mm (0.094\", 3/32\", Sub Mini, Miniature) - Headphone |
