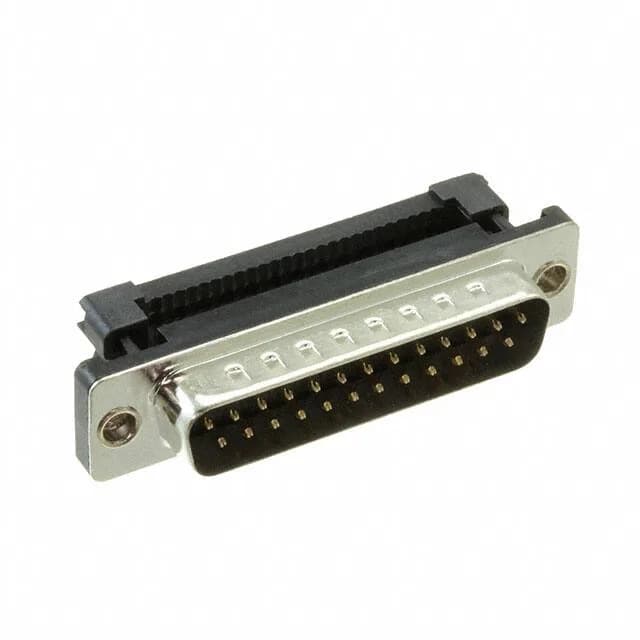

Adam Tech DB25-PF-M2
MPNDB25-PF-M2
Active
CONN D-SUB PLUG 25POS IDC
$3.2100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDPF
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DPF |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Shell size, connector layout | 3 (DB, B) |
| Operating temperature | -55°C~105°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Thermoplastic |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Grounding Indents |
| Termination | IDC, Ribbon Cable |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Positions | 25 |
