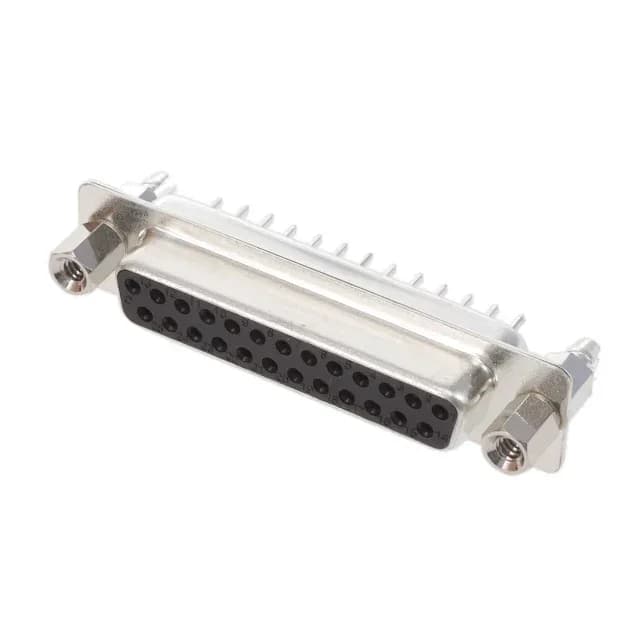

Adam Tech DB25-ST-1-BL-JS
MPNDB25-ST-1-BL-JS
Active
CONN D-SUB RCPT 25POS VERT SLDR
$2.2600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDST
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DST |
| Mounting | Through Hole |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Shell size, connector layout | 3 (DB, B) |
| Operating temperature | -55°C~85°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Board Side (4-40); Mating Side, Female Screwlock (4-40) |
| Rows | 2 |
| Positions | 25 |
| Contact finish thickness | Flash |
