Adam Tech DE09-PA-M2
MPNDE09-PA-M2
Active

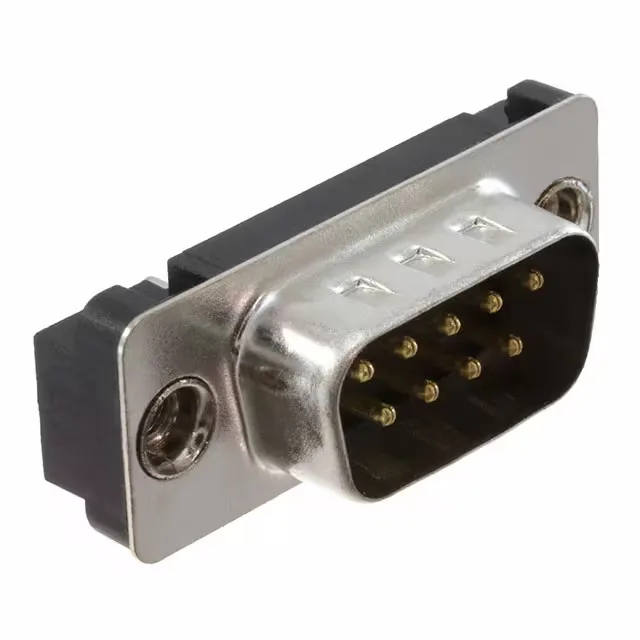

CONN D-SUB PLUG 9POS VERT SLDR
$1.58Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDPA
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DPA |
| Mounting | Through Hole |
| Connector type | Plug, Male Pins |
| Voltage rating | 250V |
| Current rating | 5A |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -65°C ~ 125°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Grounding Indents |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | Flash |
