Adam Tech DE09-SL-24
MPNDE09-SL-24
Active

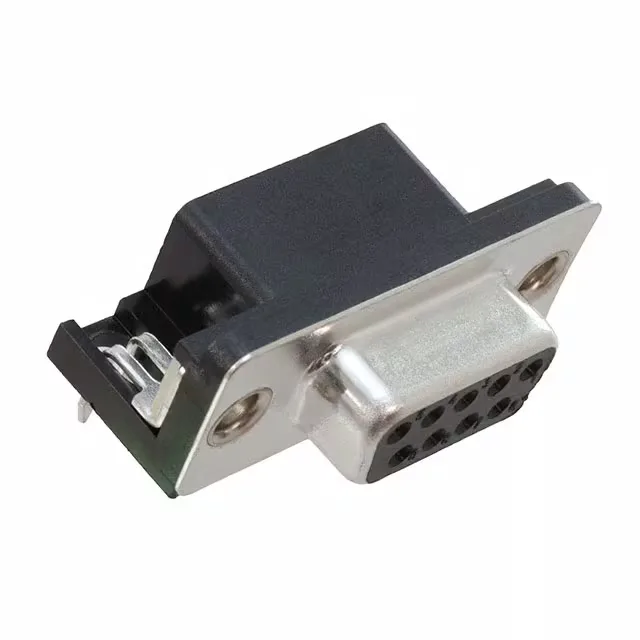

CONN D-SUB RCPT 9POS R/A SLDR
$0.94Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDSL
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DSL |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Contact form | Stamped |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -20°C ~ 85°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Backset spacing | 0.319\" (8.10mm) |
| Positions | 9 |
